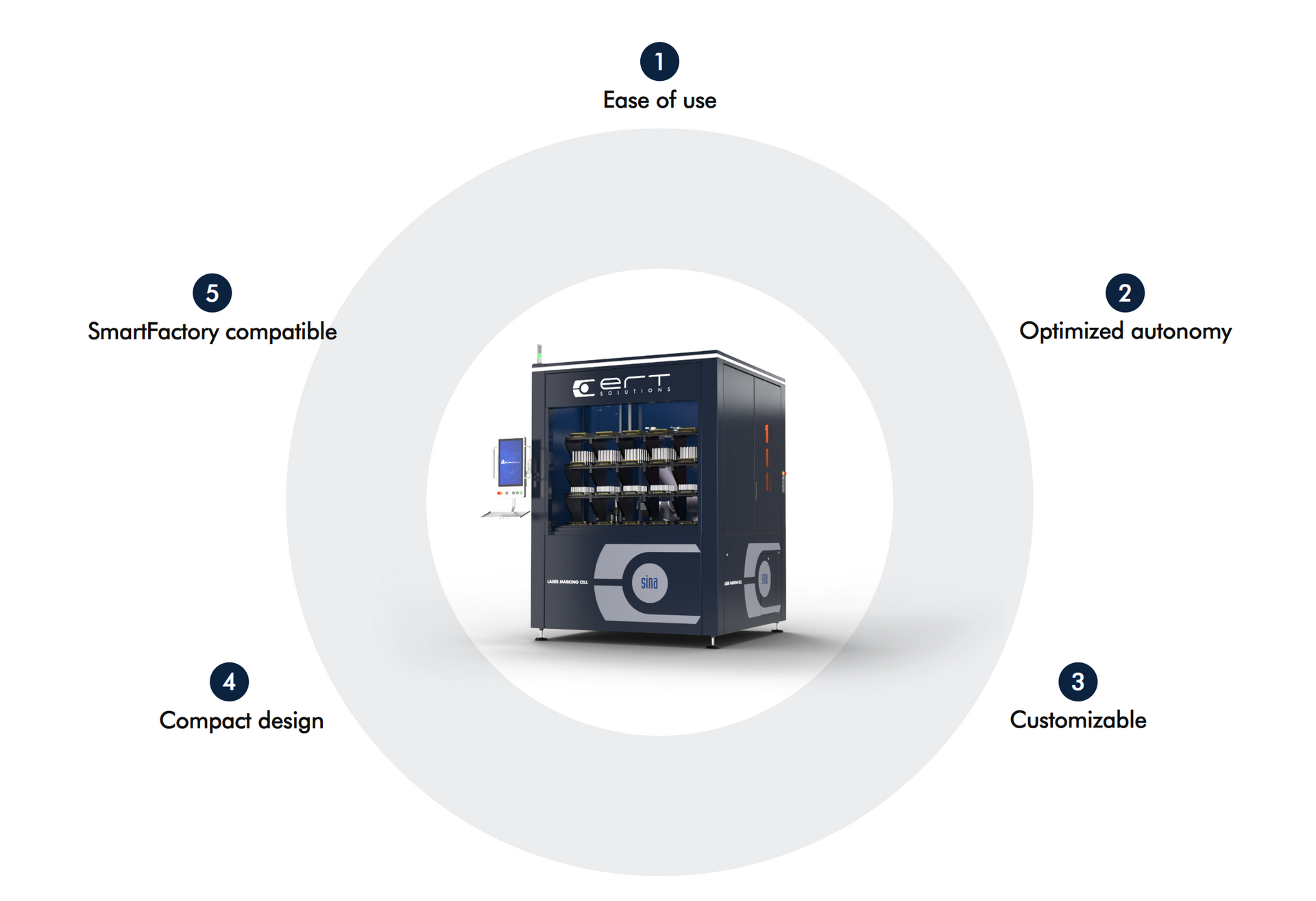

The new SINA automatic laser marking cell is specially designed to meet the productivity, traceability and quality control requirements of cutting tool manufacturers.
Available with options of an automatic door and a large 43-inch screen, the SINA cell offers an intuitive interface and optimal ease of use. In addition to being fully customizable, its design allows for the marking of a wide range of tool dimensions, while maintaining a small footprint, ideal for optimizing yourproduction space.

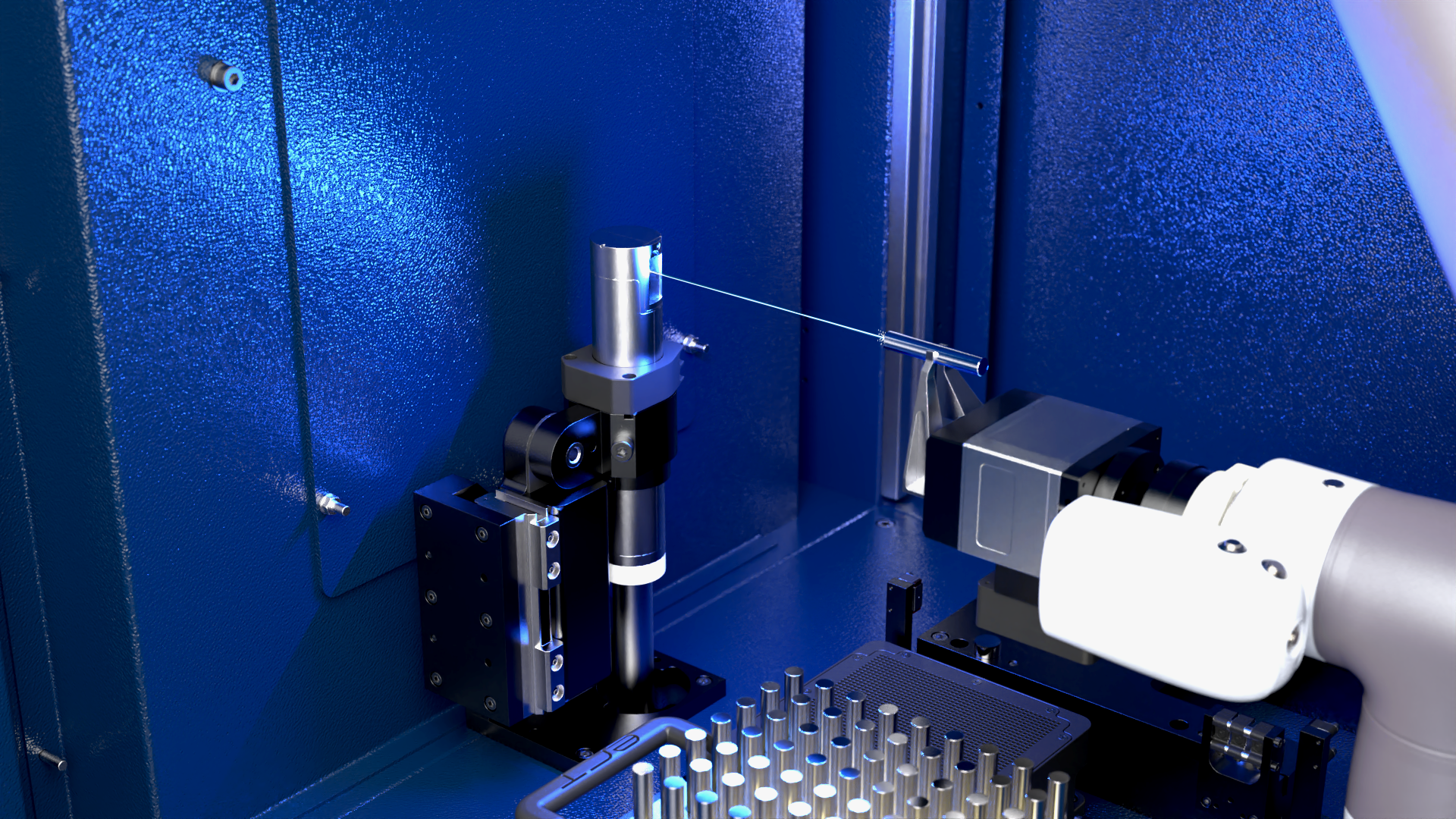

Laser
20 W Faserlaser
Rauchabsaugung inklusive
Changeover
Automatischer Aufgabenwechsel von einem Kassettenplatz zum anderen
Cycle time
Markierung auf einer Seite des Werkzeugs: mindestens 8,5 Sekunden pro Teil* (ohne Markierungszeit)
Machine dimensions
Footprint: 1.6 × 1.6 m
Height: 2.4 m
Capacity
4 Rollomatic A, B, or C cassette holders (2 empty, 2 full)
Maximum weight of a full cassette: 14 kg
Tool dimensions
Diameter: 3 to 12.7 mm
Length: 35 to 150 mm
*Cycle time may vary depending on the position of the tool in the cassette and the loading/unloading direction (vertical or horizontal).
• Automatic door
• Handheld scanner for Barcodes, Data Matrix Codes,
QR Codes, etc.
• Autonomy : 20 cassette holders (10 empty, 10 full)
• SmartFactory ready
• Large 43" screen with internal camera display

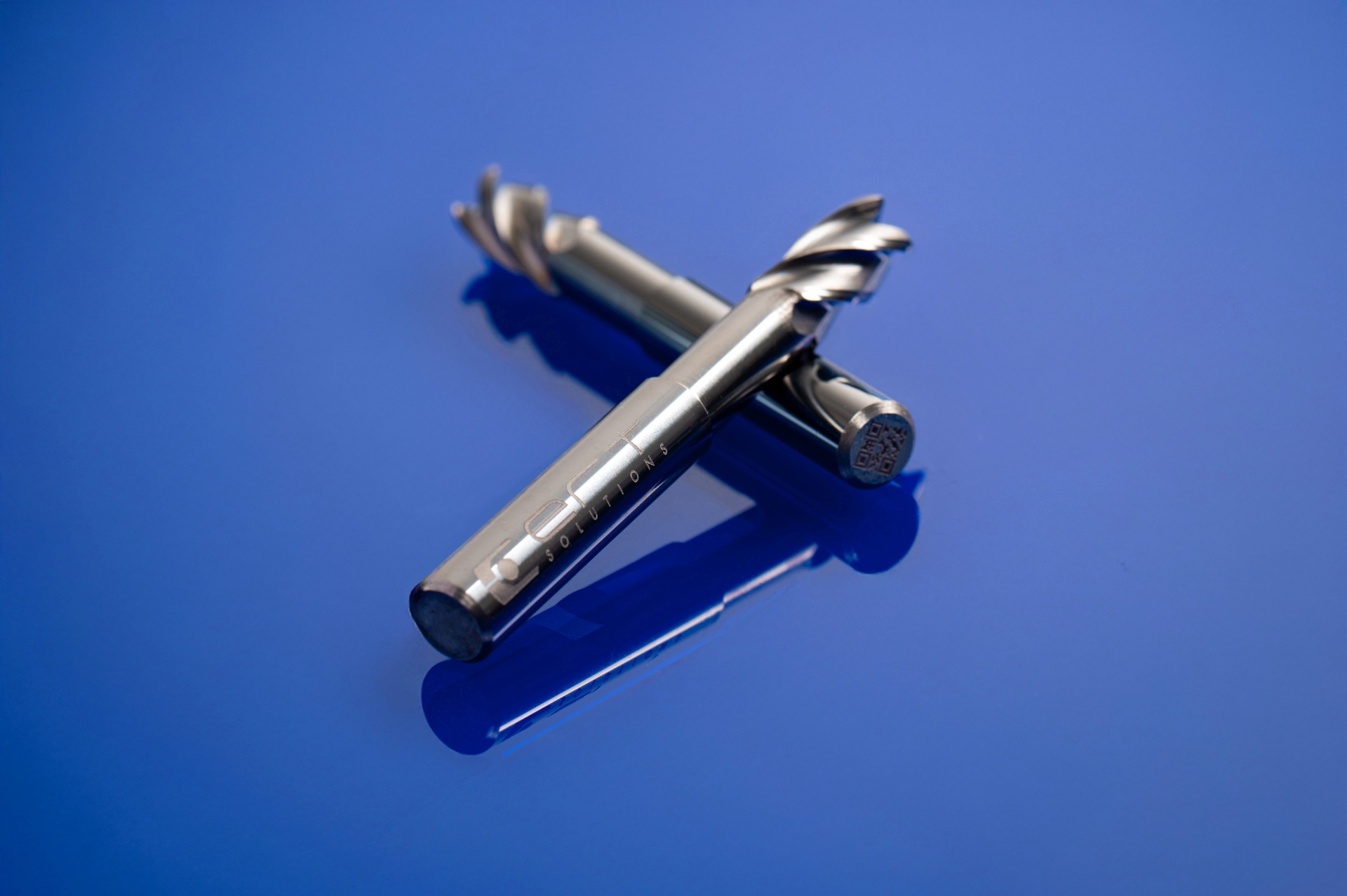

• Marking on the rear end of the tool
• Marking on the second side
• Marking indexing according to notch on the tool
• Other lengths, diameters, cassette types, and capacities available (on request)
MORE EFFICIENCY.
