VISIONSCANNER
The VISIONSCANNER4 is a cost-effective and easily integrable triangulation sensor for precise, adaptive robot guidance in production. It detects part and positional tolerances in real time and provides 3D correction data so that robots can operate reliably even when deviations occur.
The result: greater process stability, higher quality, and flexible automation in dynamic production environments.

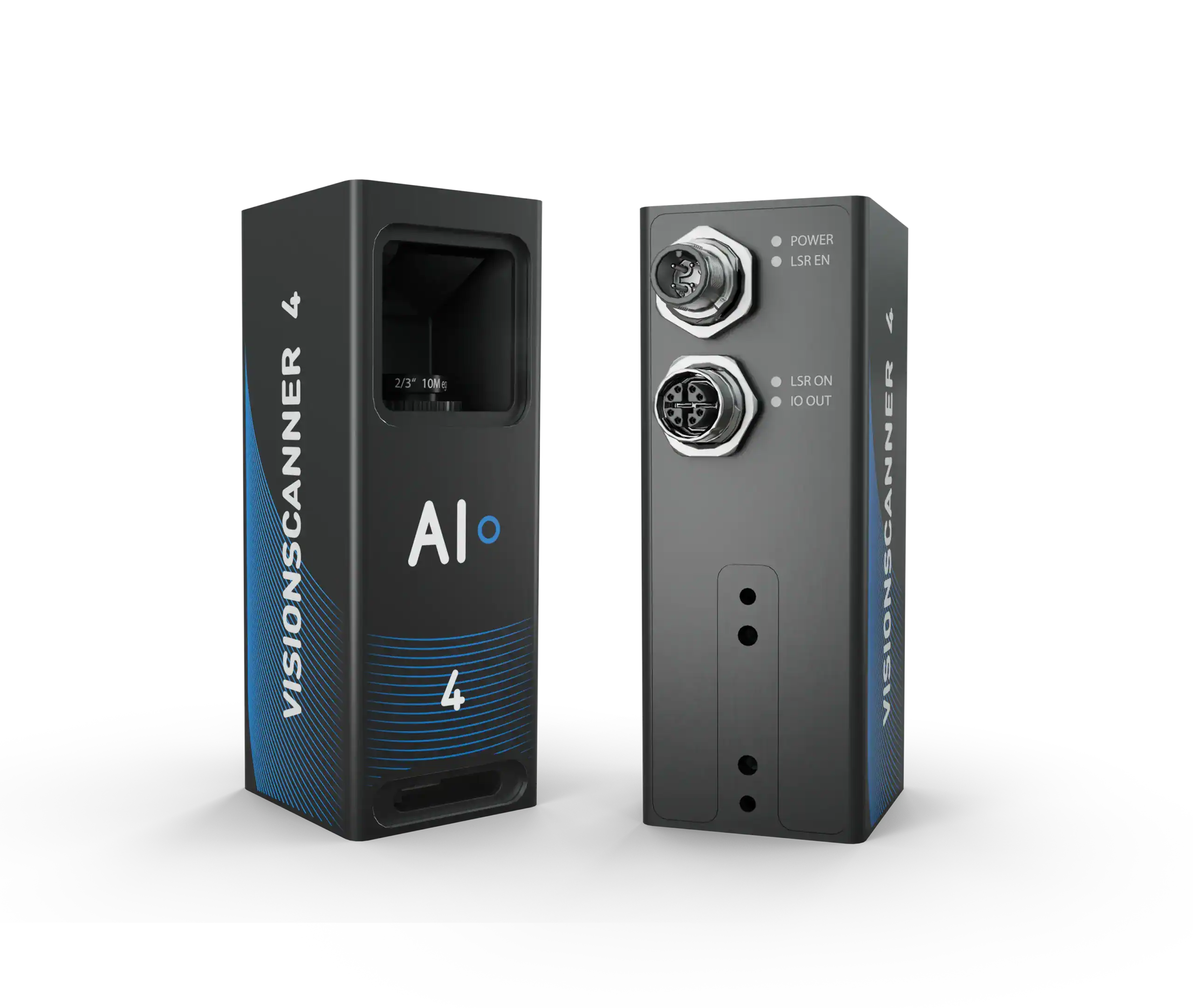

VISIONSCANNER4
Low-cost
Robot Guidance
With measurement ranges from 45 to 240 mm, a recording rate of up to
500 Hz, and a built-in processor, it can be used cost-effectively and efficiently in a wide range of applications.
The VISIONSCANNER4 is available with both red and blue lasers, allowing for flexible adaptation to specific measurement requirements. When used in conjunction with the VISIONELEMENTS4 software, it is specifically designed for use on industrial robots.
- Greater process reliability for consistent quality
- Flexible integration and quick commissioning
- Cost-effective automation with high-performance sensors
VISIONSCANNER4
Easy Integration
and Commissioning

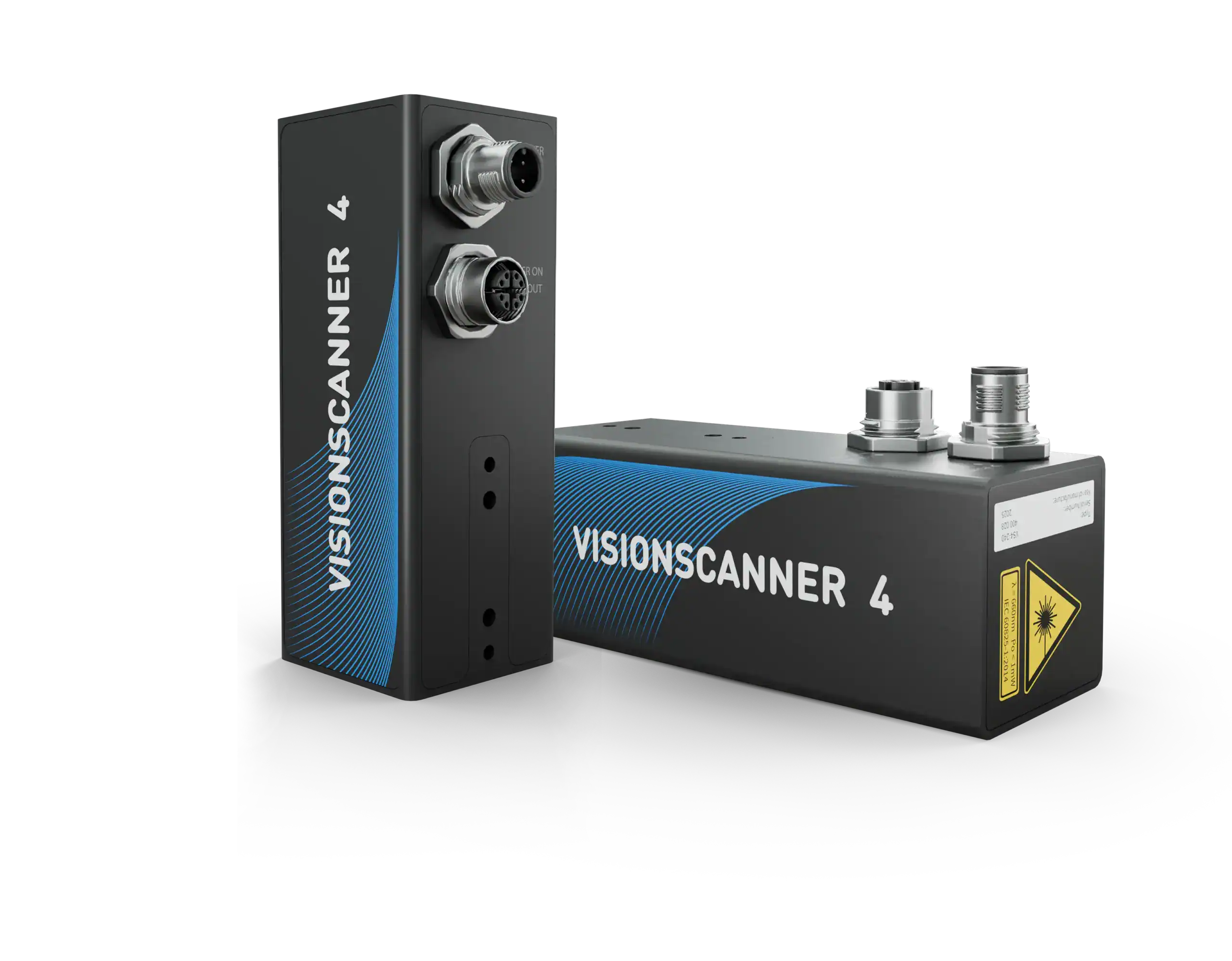

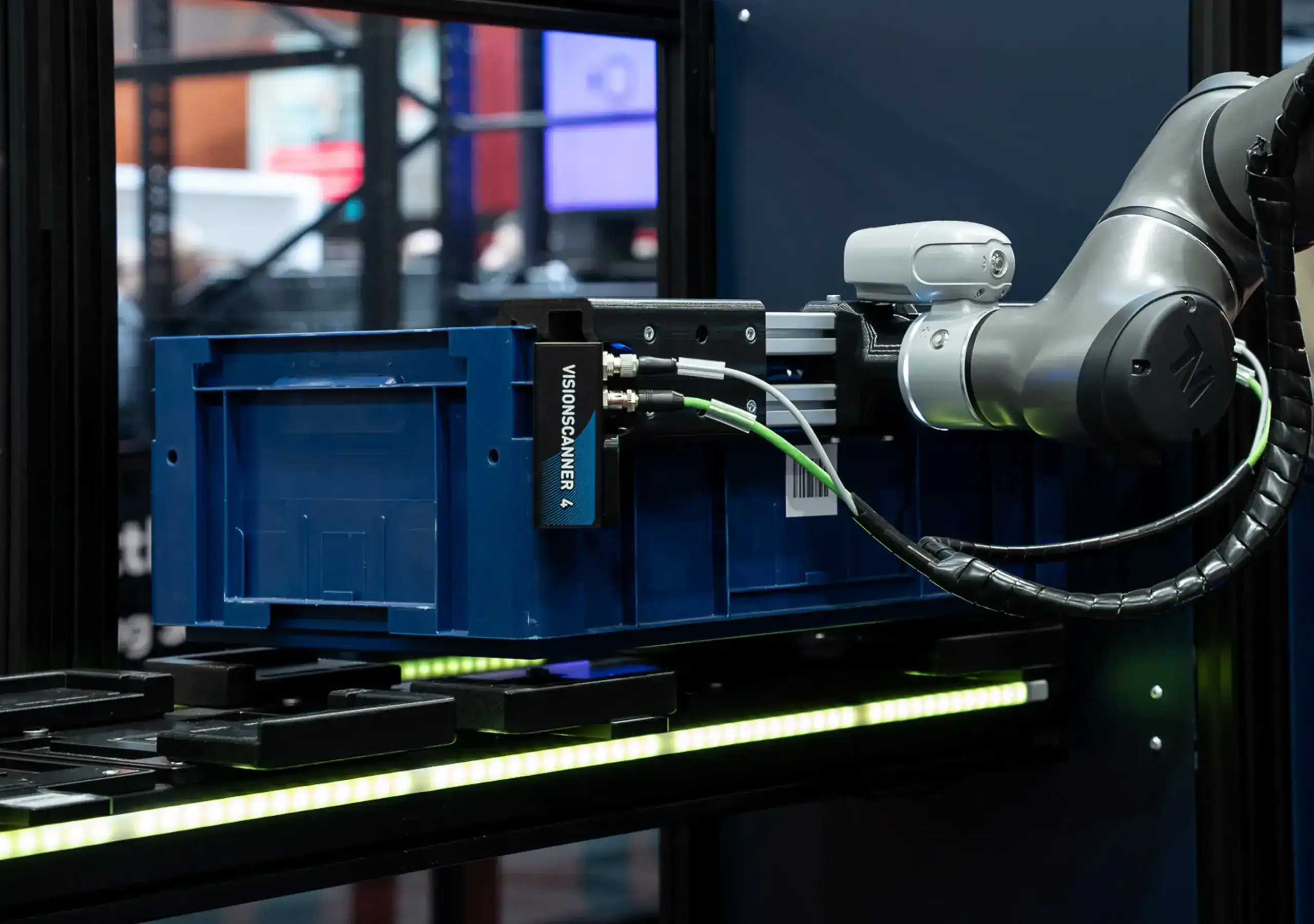

The VISIONSCANNER4 is designed specifically for easy integration into existing production environments. Thanks to standardized M12 connectors for power and Ethernet, the sensor can be easily mounted on robots, axis systems, or fixed stations and integrated into existing systems.
With the VISIONELEMENTS4 software, the sensor can be put into operation without in-depth programming knowledge. Measurement tasks and geometries can be configured quickly - ensuring a fast start, minimal project effort, and rapid value creation from the very first use.
Communication with the robot takes place via tech packages, which enable additional commands for robot actions and control the VISIONSCANNER4 directly through the automation interface.
VISIONELEMENTS4
The Control Center
for the VISIONSCANNER4

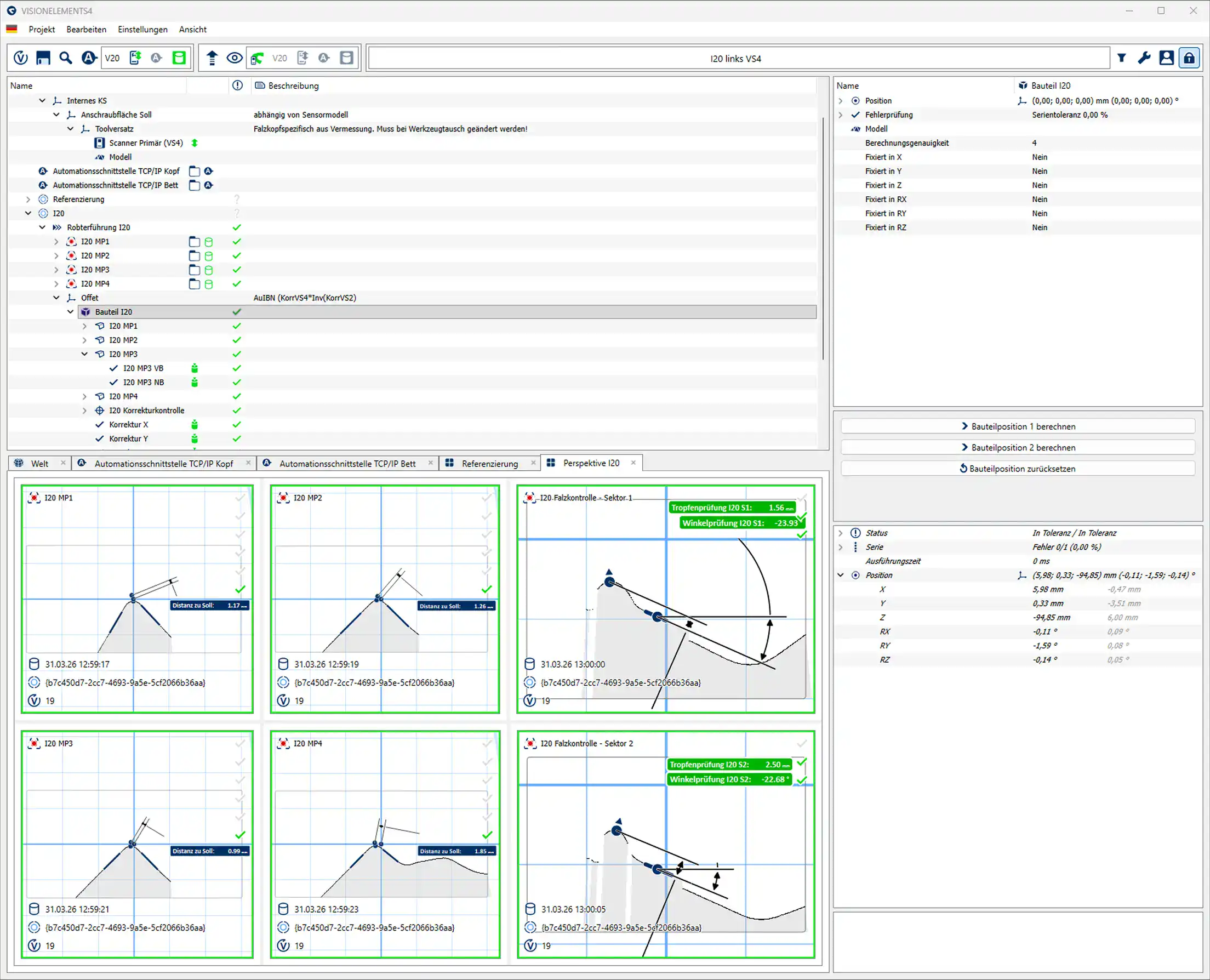

The VISIONELEMENTS software allows you to quickly and accurately detect and define geometries. Implement your measurement, inspection, or robot guidance tasks in no time. A fully integrated graphical user interface is available for this purpose. No programming knowledge is required.
Keep your system under control even during production, and take advantage of the ability to access measurement data from a previous period.
Robot Guidance
Field-proven and Versatile
Single Spot
Correcting individual application positions
Point applications, such as handling, welding, bolting, adhesive spots etc. often need precise positioning of the tool. Only this way the specified product quality can be achieved. The Single Spot Solution measures local part tolerances prior to the application and delivers the 3D data for correction of the application points.
Multi Spot
Correction of the entire application program
Track-based and handling applications such as bonding, welding, or the assembly of attached components require precise alignment of the application track or the entire component position. This is the only way to achieve the necessary product quality. To achieve this, the Multi Spot solution measures the component at multiple features and provides a 6D correction vector for the entire component.
The AI Brand
AI° stands for Next Level Imaging and Robot Vision Systems
Adaptive Imaging
AI is characterized by optimal integrability and maximum user-friendliness, especially when it comes to the demands of today's complex production scenarios. The components can be integrated without any special programming knowledge.
Automation Interface
We understand the challenges faced by manufacturing companies that must navigate complex production systems to enhance their own competitiveness. Our products offer maximum convenience and require minimal technical expertise, thanks to available interfaces for a wide variety of robots and control systems.
Artificial Intelligence
Drawing on our many years of experience working with industrial robots, particularly in the automotive industry, we understand the requirements for quality and process optimization in the manufacture of a wide variety of products, and we provide sensors and intelligence as part of a comprehensive machine vision solution.
All-Inclusive
We offer our customers a wide range of options, from individual components to complete solutions. AI° not only provides high-quality products, but also services such as support with parameterization and commissioning, training, and software enhancements for specific requirements.
